GEPAC10X swimming pool heat pump

  • Product details
    GEPAC10X swimming pool heat pump
    with Full Inverter technology

    The appliances in the GEPAC-X product line, which can be used all year round, are highly efficient, top-of-the-range appliances. They are equipped with TURBO+ mode as well as software and hardware optimisation of the Full Inverter technology.

    These low-noise appliances bring the water to the desired temperature with an overperformance of 120% while maintaining a high COP. The GEPAC-X units then automatically regulate their operation to continue to maximise COP regardless of the conditions.

    EFFICIENT DESIGN: Optimised heat exchange and ventilation thanks to the honeycomb design!

    SELF-REGULATION: Intelligent regulation, energy consumption and COP optimised around the clock !

    DOUBLE ROTATION COMPRESSOR: Speed adapted to the conditions (air and water temperature) !

    HEART OF TITANIUM: New titanium heat exchanger: increased efficiency & COP !

    Brushless fan motor: Precise, quiet, reliable and long service life !

    LOW TEMPERATURE: Operation at low temperatures thanks to integrated intelligent defrost function !

    .

    If you are interested, we will be happy to provide you with a customised offer
    .

    Performance at 26 °C air temperature, 26 °C water temperature and 80 % humidity:
    Heating output in Smart mode: 8.5 kW
    Heat output in TURBO+ mode: 10.2 kW
    COP - Max / Min. output: 15.1 ~ 7.1
    COP - Smart mode: 7.8
    COP - Output 50%: 11.3

    Performance at 15 °C air temperature, 26 °C water temperature and 70 % humidity:
    Heating output in Smart mode: 6.3 kW
    Heat output in TURBO+ mode: 7.5 kW
    COP - Max / Min. output: 6.9 ~ 4.8
    COP - Smart mode: 5.2
    COP - Power 50%: 6.5

    Performance at 35 °C air temperature, 28 °C water temperature and 80 % humidity:
    Cooling capacity: 4.4 kW

    Capabilities:

    • Smart Home capable with app control (Wifi)
    • Touch display
    • Aluminium housing
    • Easy commissioning: Connect water inlet and outlet as well as power, parameterise and switch on!
    • 3 speed levels: Turbo+ / Smart / Silence mode
    • Turbo+ mode: Ultra-quiet operation at 120 % maximum power
    • Smart mode: power is adjusted in real time between 20% and 100% to optimise the energy flow and maximise the COP
    • Silent mode: Maintains power below 60% to keep the noise level as low as possible
    • Display of water inlet and outlet temperature
    • Real-time display of power consumption

    Usage:

    • Swimming pools and pools

    Technical details:

    Pool Volumen:20-40 m³
    Operating air temperature:-15 bis +43 °C
    Sound pressure 1m (min. / max. power):38,5 ~ 45,5 dB/A
    Sound pressure 1m (power 50%):39,5 dB/A
    Sound pressure 10 m (min. / max. power):18,5 ~ 25,5 dB/A
    Compressor:Mitsubishi double rotary compressor
    Heat exchanger:Titanium spiral in PVC housing
    Housing material:Aluminium alloy
    Voltage:230V/1 Ph/50Hz
    Power consumption (min. / max.):0,18 ~ 1,53 kW
    Max. Input power:10 A
    Power cable:3 x 2,5 mm²
    Recommended water flow rate:2-4 m³
    Diameter input & output:50 mm
    Dimension (H/W/D):650 x 799 x 432 mm
    Weight:51 Kg

    Others:

    We dispatch daily from Mon - Fri and at the latest on the day after receipt of payment! (With fast bank transfer you will usually have this device within 2-4 working days after purchase) !!!
    With us you get a branded product and of course a comprehensive customer service, even after the warranty period has expired!

    Details
    SKU GEPAC10X
    EAN
    Manufacturer GECO GROUPE SAS, 2A rue de l'Embranchement, 67116 Reichstett / France, [email protected]
    Weight 60,00 kg
    Shipping Company Spedition / Freight Forwarder


  • More Images

    Product Detail Pictures

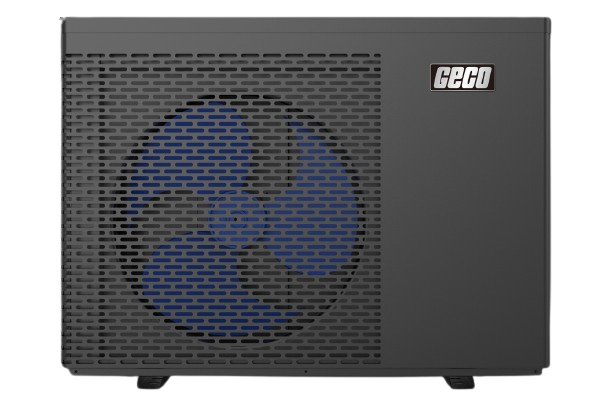

    GEPAC10X_main

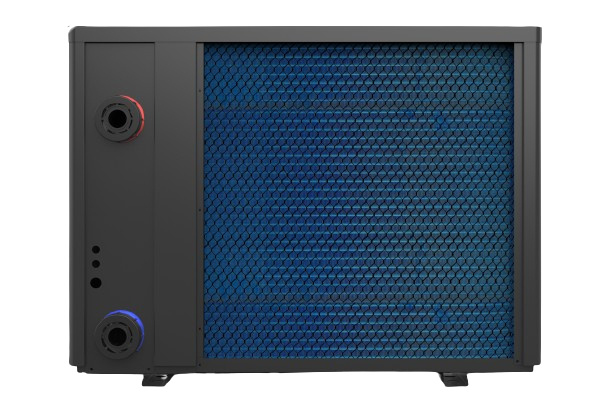

    GEPAC10X_back

    Product Information

    GEPAC10X_COP
    GEPAC10X_info

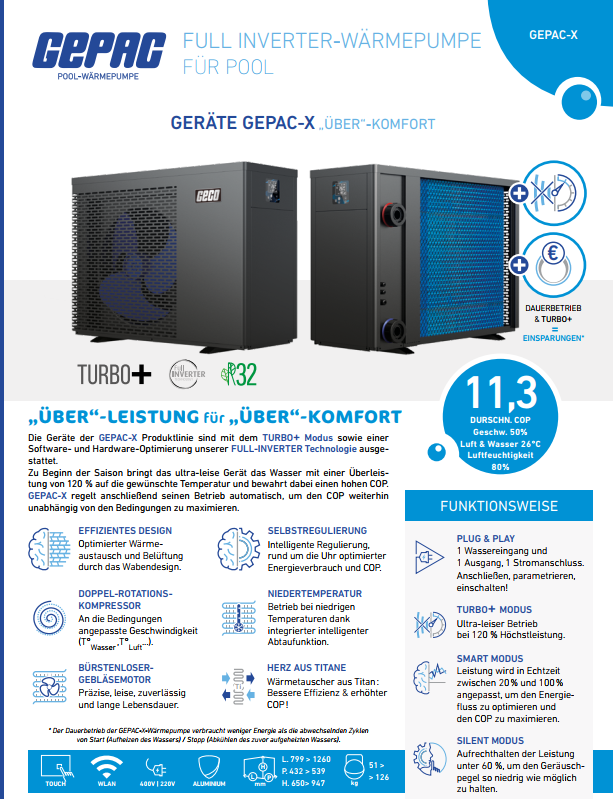

    GEPAC10X_Marketing-Sheet
